6 Flute - Corner Radius - Variable Pitch - Reduced Neck (Tplus)
End Mills for Steels, Stainless & High Temp Alloys
optimised for stainless steels, high temp alloys, and hardened steels up to 65 Rc, this 6 Flute End Mill features reduced neck geometry for increased feed rates and outstanding performance in long reach and deep pocketing applications.
- Offers proven performance and extended tool life in stainless steels, high temp alloys, hardened steels, and other ferrous alloys
- Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
- 6 flute variable pitch design for reduced harmonics and increased feed rates
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Centre cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for superior tool life and increased edge strength
- Manufactured to DIN 6535 Form HA
Advanced Search

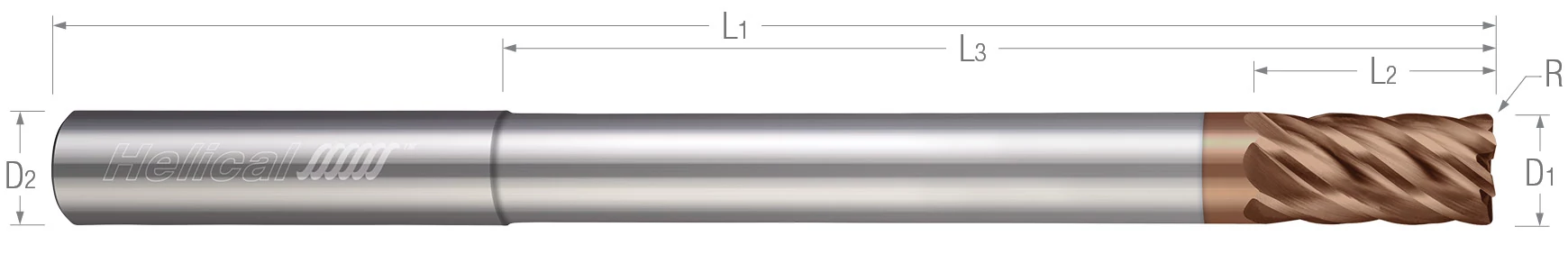

| Cutter Diameter | Shank Diameter | Corner Radius | Length of Cut | Overall Length | Reach (LBS) | Neck Diameter | Flutes | Tplus Coated | Tool Description | Add to Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D1(e8) | D2(h6) | R +0.01 mm-0.01 mm |
L2 +0.7 mm+0.0 mm |
L1 +1.5 mm-1.5 mm |
L3 | . | # | Tool # | Price | ||
