2 Flute, Corner Radius - High Balance, Reduced Neck

End Mills for Aluminum Alloys & Non-Ferrous Materials
2 Flute, Corner Radius-High Balance, Reduced Neck

HMG-RN-2 | Carbide End Mills

The reduced neck design of the HMGC-RN-2, our precision balanced end mill designed for high velocity machining in aluminum (up to 33,000 rpm), provides maximum strength in long reach and deep pocketing applications.

  • Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
  • Designed for high performance in Makino MAG machining centers capable of elevated RPMs and feed rates
  • Precision balanced for high velocity machining in aluminum (up to 33,000 RPM)

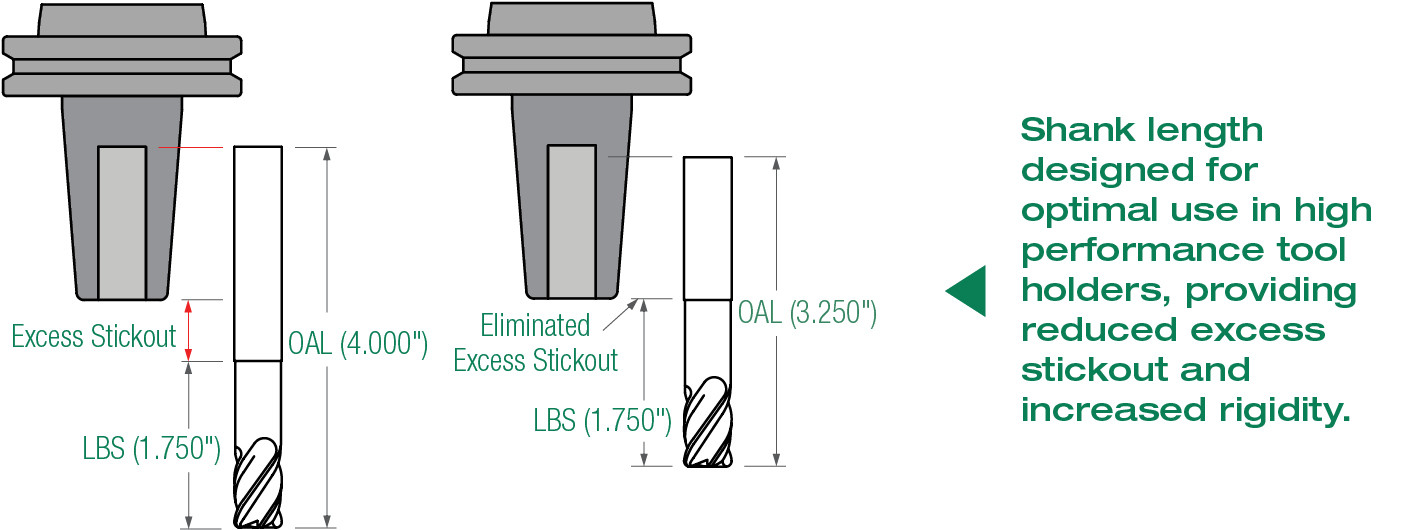

  • Shank length designed for optimal use in high performance tool holders, providing reduced excess stickout and increased rigidity
  • Excellent performance in High Efficiency Milling (HEM)
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Solid carbide end mills
  • CNC ground in the USA
3D Contouring 3D Contouring
Finishing Finishing
Plunging Plunging
Roughing Roughing
Slotting Slotting

Advanced Search

Cutter Diameter Shank Diameter Corner Radius Length of Cut Overall Length LBS (Reach) Neck Diameter Flutes Uncoated Tool Description Add to Cart
D1(h6) D2(h6) R
+.002"-.002"
L2
+.032"-.000"
L1
+.062"-.062"
L3 . # Tool # Price
* .0003 max TIR
