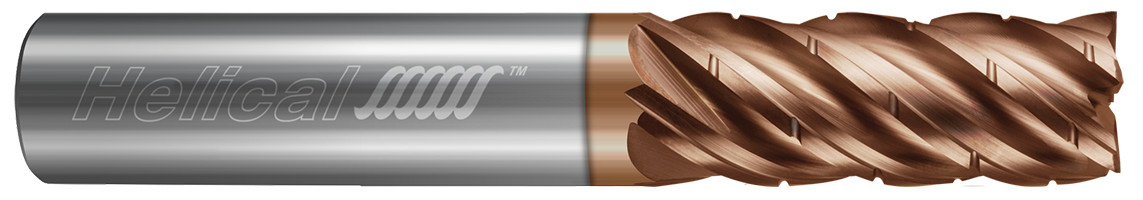

5 Flute - Square - Variable Pitch - Chipbreaker
End Mills for Stainless & High Temp
Experience reduced harmonics, increased feed rates, and high temperature resistance in stainless steels, high temp alloys, hardened steels, and other ferrous alloys with these 5 flute high performance tools.
- Reduces harmonics, increases feed rates, and provides high temperature resistance.
- Offers proven performance and extended tool life in stainless steels, high temp alloys, hardened steels, and other ferrous alloys
- Engineered for excellent performance in High Efficiency Milling (HEM) applications
- 5 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for superior tool life and increased edge strength
- Solid carbide
- CNC ground in the USA
Advanced Search

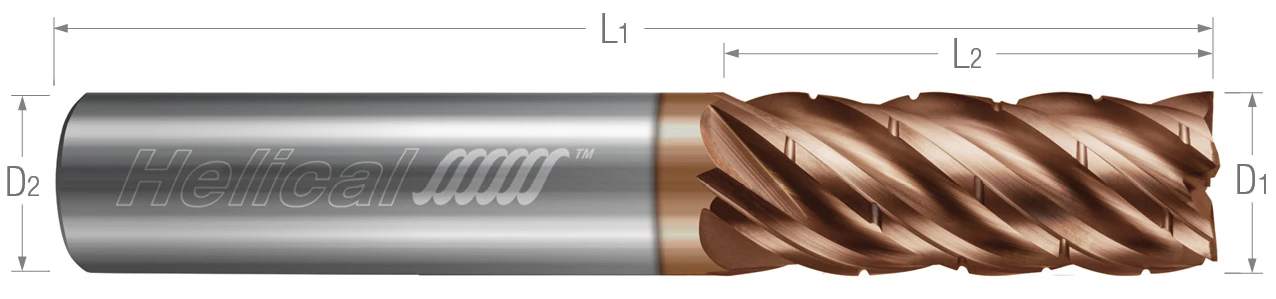

| Cutter Diameter* | Shank Diameter | Length of Cut | Overall Length | Flutes | Tplus Coated | Tool Description | Add to Cart | |
|---|---|---|---|---|---|---|---|---|
| D1 +.000"-.002" |
D2(h6) | L2 +.032"-.000" |
L1 +.062"-.062" |
# | Tool # | Price | ||
* .0005 max TIR
