5 Flute - Square - Variable Pitch - Chipbreaker (Aplus)

End Mills for Steel

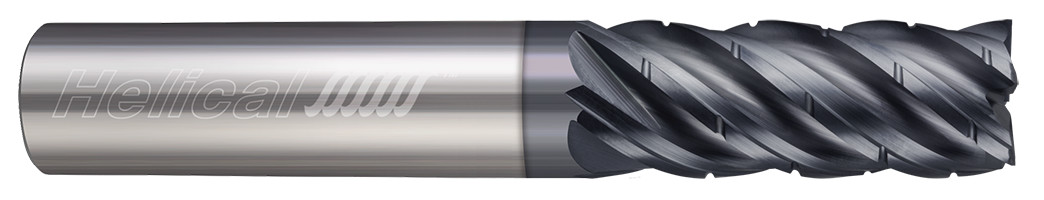

HEV-C-5 |Carbide End Mills

Engineered for HEM excellence, this 5 flute tool features variable pitch and offset chipbreaker geometry for optimal chip evacuation and reduced harmonics and tool pressure in a wide range of ferrous materials.

  • Variable pitch and offset chipbreaker geometry for optimal chip evacuation and reduced harmonics.
  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered for excellent performance in High Efficiency Milling (HEM) applications
  • 5 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide
  • CNC ground in the USA

Advanced Search

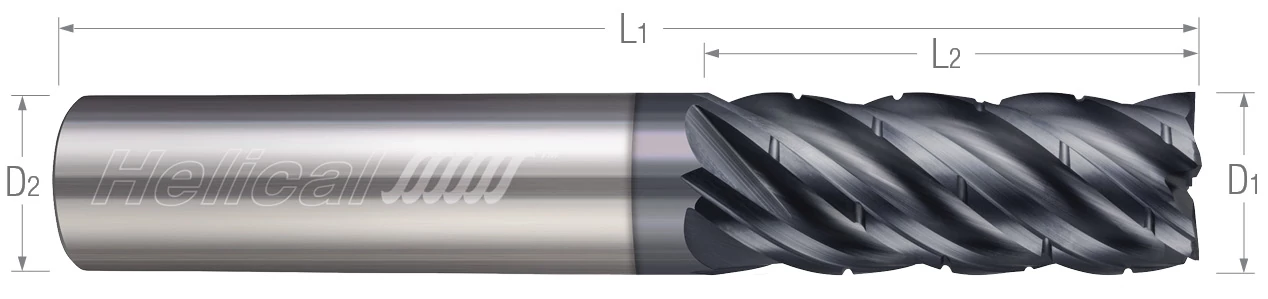

Cutter Diameter* Shank Diameter Length of Cut Overall Length Flutes Aplus Coated Tool Description Add to Cart
D1
+.000"-.002"
D2(h6) L2
+.032"-.000"
L1
+.062"-.062"
# Tool # Price
* .0005 max TIR
