6 Flute - Corner Radius - Variable Pitch - For High Efficiency Milling

End Mills for Titanium
6 Flute - Corner Radius - Variable Pitch - For High Efficiency Milling

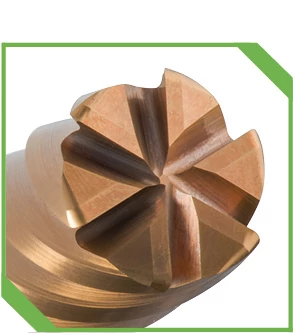

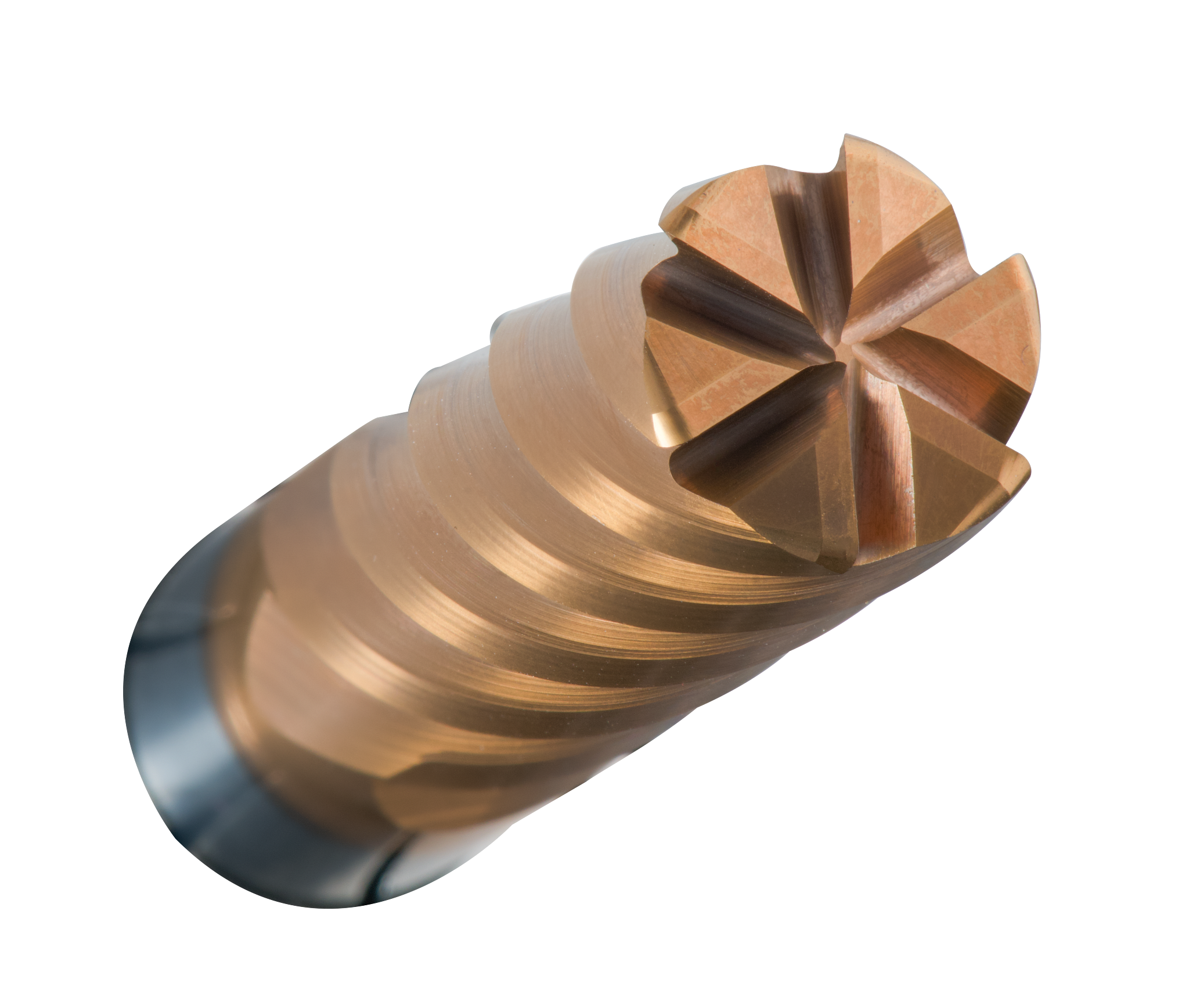

HVTI-6 | Carbide End Mills

Utilize the HVTI-6, Helical Solutions' product line of tooling optimized for Titanium 6Al4V and other titanium alloys, to achieve exceptional performance in High Efficiency Milling (HEM).

  • Engineered for optimal performance in High Efficiency Milling (HEM)
  • Optimized design for Titanium 6AL4V and other titanium alloys
  • Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Not for use in traditional slotting and roughing toolpaths
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating for added lubricity, higher speeds and feeds, and increased wear resistance
  • Solid carbide end mills
  • CNC ground in the USA
Plunging Plunging
High Efficiency Milling (HEM) High Efficiency Milling (HEM)
Finishing Finishing

Advanced Search

* .0005 max TIR
Cutter Diameter* Shank Diameter Corner Radius Length of Cut Overall Length Flutes Aplus coated Tool Description Add to Cart Default Sort
D1
-.000"-.002"
D2(h6) R
+.002"-.002"
L2
+.032"-.000"
L1
+.062"-.062"
Tool # Price
1/4 1/4 .010 1/2 2-1/2 6 82059 $32.10 HVTI-020-60250-R.010 00000001
1/4 1/4 .010 3/4 2-1/2 6 82060 $34.70 HVTI-030-60250-R.010 00000002
1/4 1/4 .010 1 3 6 82061 $45.90 HVTI-040-60250-R.010 00000003
1/4 1/4 .030 1/2 2-1/2 6 82062 $32.10 HVTI-020-60250-R.030 00000004
1/4 1/4 .030 3/4 2-1/2 6 82063 $34.70 HVTI-030-60250-R.030 00000005
1/4 1/4 .030 1 3 6 82064 $45.90 HVTI-040-60250-R.030 00000006
3/8 3/8 .010 1 3 6 82065 $50.40 HVTI-026-60375-R.010 00000007
3/8 3/8 .010 1-1/4 3 6 82066 $59.10 HVTI-033-60375-R.010 00000008
3/8 3/8 .010 1-1/2 3-1/2 6 82067 $62.80 HVTI-040-60375-R.010 00000009
3/8 3/8 .030 1 3 6 82068 $50.40 HVTI-026-60375-R.030 00000010
3/8 3/8 .030 1-1/4 3 6 82069 $59.10 HVTI-033-60375-R.030 00000011
3/8 3/8 .030 1-1/2 3-1/2 6 82070 $62.80 HVTI-040-60375-R.030 00000012
1/2 1/2 .010 1 3 6 82071 $78.90 HVTI-020-60500-R.010 00000013
1/2 1/2 .010 1-1/4 3 6 82072 $81.70 HVTI-025-60500-R.010 00000014
1/2 1/2 .010 1-5/8 4 6 82073 $100.40 HVTI-032-60500-R.010 00000015
1/2 1/2 .010 2 4 6 82074 $105.50 HVTI-040-60500-R.010 00000016
1/2 1/2 .030 1 3 6 82075 $79.10 HVTI-020-60500-R.030 00000017
1/2 1/2 .030 1-1/4 3 6 82076 $82.00 HVTI-025-60500-R.030 00000018
1/2 1/2 .030 1-5/8 4 6 82077 $100.60 HVTI-032-60500-R.030 00000019
1/2 1/2 .030 2 4 6 82078 $105.70 HVTI-040-60500-R.030 00000020
1/2 1/2 .060 1 3 6 82079 $79.80 HVTI-020-60500-R.060 00000021
1/2 1/2 .060 1-1/4 3 6 82080 $82.50 HVTI-025-60500-R.060 00000022
1/2 1/2 .060 1-5/8 4 6 82081 $101.40 HVTI-032-60500-R.060 00000023
1/2 1/2 .060 2 4 6 82082 $105.70 HVTI-040-60500-R.060 00000024
1/2 1/2 .120 1 3 6 82083 $87.70 HVTI-020-60500-R.120 00000025
1/2 1/2 .120 1-1/4 3 6 82084 $90.40 HVTI-025-60500-R.120 00000026
1/2 1/2 .120 1-5/8 4 6 82085 $110.90 HVTI-032-60500-R.120 00000027
1/2 1/2 .120 2 4 6 82086 $111.30 HVTI-040-60500-R.120 00000028
3/4 3/4 .030 1-5/8 4 6 82087 $241.60 HVTI-021-60750-R.030 00000029
3/4 3/4 .030 2-1/4 5 6 82088 $276.10 HVTI-030-60750-R.030 00000030
3/4 3/4 .060 1-5/8 4 6 82089 $243.90 HVTI-021-60750-R.060 00000031
3/4 3/4 .060 2-1/4 5 6 82090 $278.30 HVTI-030-60750-R.060 00000032
3/4 3/4 .090 1-5/8 4 6 82091 $244.90 HVTI-021-60750-R.090 00000033
3/4 3/4 .090 2-1/4 5 6 82092 $279.40 HVTI-030-60750-R.090 00000034
3/4 3/4 .120 1-5/8 4 6 82093 $248.30 HVTI-021-60750-R.120 00000035
3/4 3/4 .120 2-1/4 5 6 82094 $285.00 HVTI-030-60750-R.120 00000036
1 1 .030 2 4-1/2 6 82095 $403.10 HVTI-020-61000-R.030 00000037
1 1 .030 2-5/8 5 6 82096 $488.30 HVTI-026-61000-R.030 00000038
1 1 .060 2 4-1/2 6 82097 $403.10 HVTI-020-61000-R.060 00000039
1 1 .060 2-5/8 5 6 82098 $488.30 HVTI-026-61000-R.060 00000040
1 1 .120 2 4-1/2 6 82099 $408.70 HVTI-020-61000-R.120 00000041
1 1 .120 2-5/8 5 6 82100 $493.90 HVTI-026-61000-R.120 00000042
