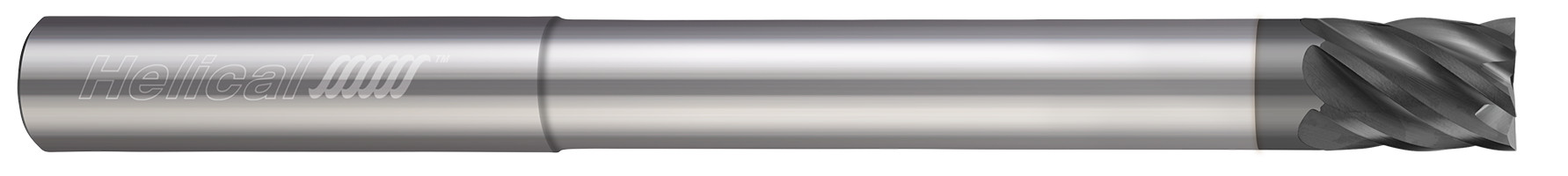

6 Flute - Corner Radius - Variable Pitch - Reduced Neck - For HEM
End Mills for Titanium
This 6 flute high performance tool, engineered for High Efficiency Milling (HEM) in titanium, features variable pitch and reduced neck geometries for higher quality parts in long reach and deep pocketing applications.
- Features reduced neck geometry for maximum strength in long reach and deep pocketing applications.
- Specially engineered for optimal performance in High Efficiency Milling (HEM) and Heavy Radial Efficiency Milling (HREM) of Titanium 6Al4V and other titanium alloys
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Not for use in traditional slotting and roughing toolpaths
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide
- CNC ground in the USA
Advanced Search

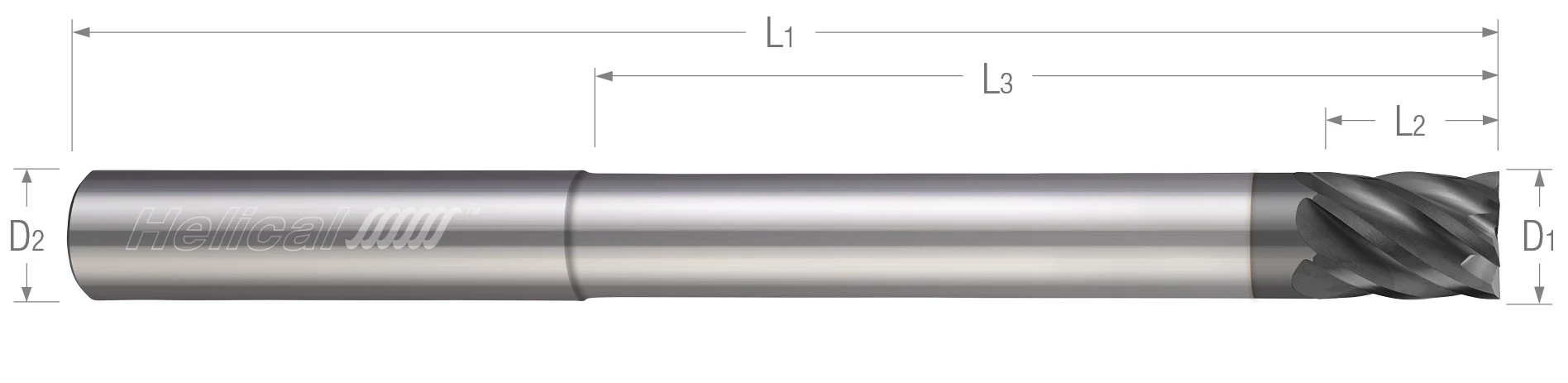

| Cutter Diameter | Shank Diameter | Corner Radius | Length of Cut | Overall Length | LBS (Reach) |
Neck Diameter | Flutes | Aplus Coated | Tool Description | Add to Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D1 +.000"-.002" |
D2(h6) | R +.002"-.002" |
L2 +.032"-.000" |
L1 +.062"-.062" |
L3 | . | # | Tool # | Price | ||
* .0005 max TIR
