Tool # 35242

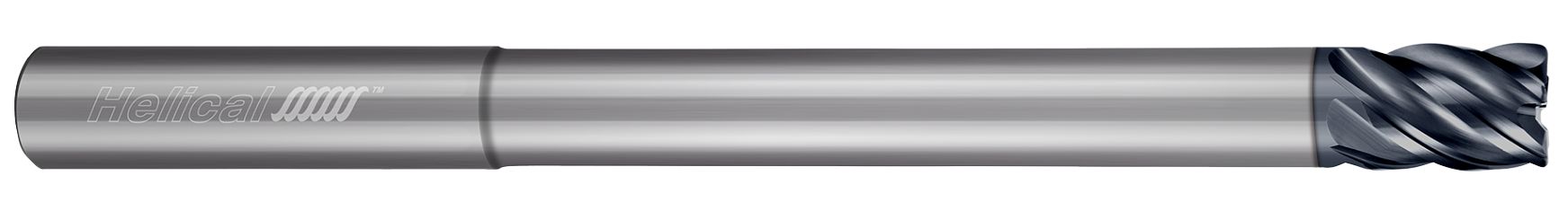

5 Flute - Corner Radius - Variable Pitch - Reduced Neck, End Mills for Steels, High-Temp Alloys, & Titanium
tool-details-35242
tool-details-35242
Tool # 35242
  • Cutter Diameter: 0.5000" (1/2)
  • Corner Radius: 0.0300"
  • Length of Cut: 0.6250" (5/8)
  • Reach (LBS): 2.2500" (2-1/4)
  • Neck Diameter: 0.4750"
see more dimensions
  • Tool #: 35242
  • Quantity Available: 203
  • Price: $106.60
  • Customer Rating:
RESOURCES
OPTIMIZED FOR
Operations
Slotting Slotting
Plunging Plunging
High Efficiency Milling (HEM) High Efficiency Milling (HEM)
Finishing Finishing
Roughing Roughing
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel Exotic Metal Titanium
TOOL DIMENSIONS
  • Cutter Diameter 0.5000" (1/2)
  • Corner Radius 0.0300"
  • Length of Cut 0.6250" (5/8)
  • Reach (LBS) 2.2500" (2-1/4)
  • Neck Diameter 0.4750"
  • Shank Diameter 0.5000" (1/2)
  • Overall Length 4.0000" (4)
  • Flutes 5
  • Profile Corner Radius
  • Shank Modification None
  • Item Desc HEV-RN-R-50500-R.030
  • Coating APLUS
