Tool # 46405

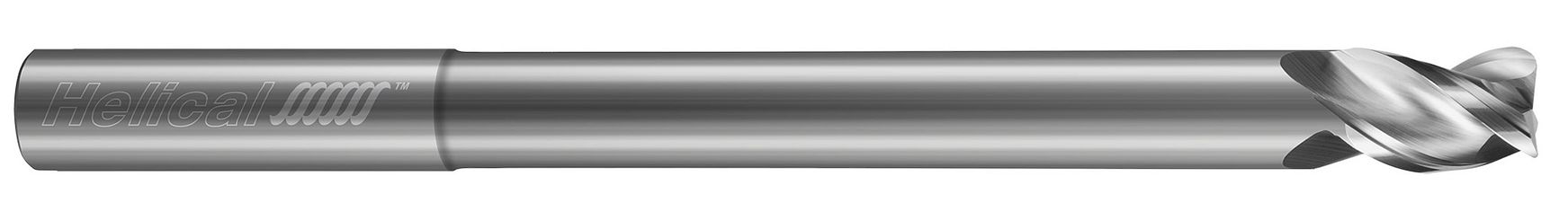

3 Flute, Corner Radius - 40° Helix, Variable Pitch, Reduced Neck, End Mills for Aluminum Alloys & Non-Ferrous Materials
tool-details-46405
tool-details-46405
Tool # 46405
  • Cutter Diameter: 0.5000" (1/2)
  • Corner Radius: 0.0600"
  • Length of Cut: 0.6250" (5/8)
  • Reach (LBS): 4.2500" (4-1/4)
  • Neck Diameter: 0.4750"
see more dimensions
  • Tool #: 46405
  • Quantity Available: 14
  • Price: $92.50
  • Customer Rating:
RESOURCES
OPTIMIZED FOR
Operations
Slotting Slotting
Plunging Plunging
High Efficiency Milling (HEM) High Efficiency Milling (HEM)
Finishing Finishing
Roughing Roughing
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel Exotic Metal Titanium
TOOL DIMENSIONS
  • Cutter Diameter 0.5000" (1/2)
  • Corner Radius 0.0600"
  • Length of Cut 0.6250" (5/8)
  • Reach (LBS) 4.2500" (4-1/4)
  • Neck Diameter 0.4750"
  • Shank Diameter 0.5000" (1/2)
  • Overall Length 6.0000" (6)
  • Flutes 3
  • Profile Corner Radius
  • Shank Modification None
  • Item Desc H40ALV-RN-X-30500-R.060
  • Coating UN
