Tool # 59628
6 Flute, Corner Radius - Variable Pitch - Metric (Aplus), End Mills for Steels, Tool Steels, Cast Iron, & Titanium
tool-details-59628
tool-details-59628
Tool # 59628
  • Cutter Diameter: 6.000 mm
  • Corner Radius: 1.000 mm
  • Length of Cut: 18.000 mm
  • Shank Diameter: 6.000 mm
  • Overall Length: 63.000 mm
see more dimensions
  • Tool #: 59628
  • Quantity Available: 10
  • Price: $43.50
  • Customer Rating:
RESOURCES
OPTIMIZED FOR
Operations
3D Contouring 3D Contouring
Plunging Plunging
High Efficiency Milling (HEM) High Efficiency Milling (HEM)
Finishing Finishing
Roughing Roughing
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel High Temp Alloys Titanium

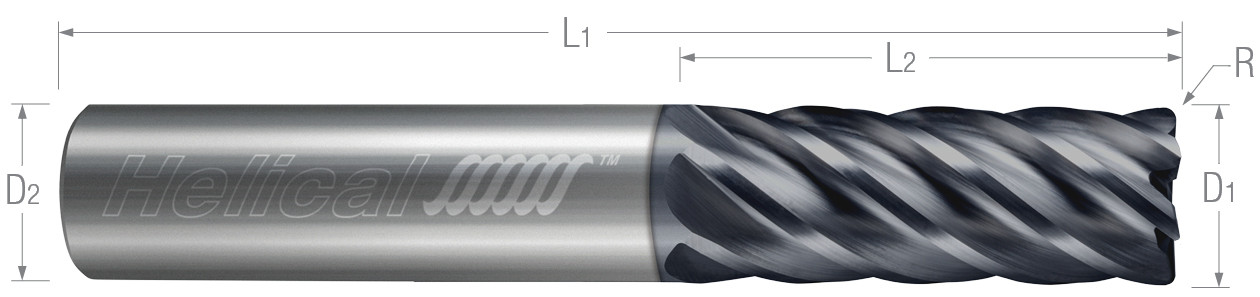

TOOL DIMENSIONS
  • Cutter Diameter 6.000 mm
  • Corner Radius 1.000 mm
  • Length of Cut 18.000 mm
  • Shank Diameter 6.000 mm
  • Overall Length 63.000 mm
  • Flutes 6
  • Profile Corner Radius
  • Metric 1
  • Shank Modification None
  • Item Desc MHEV-030-60600-R1.00
  • Coating APLUS
