Tool # 83512

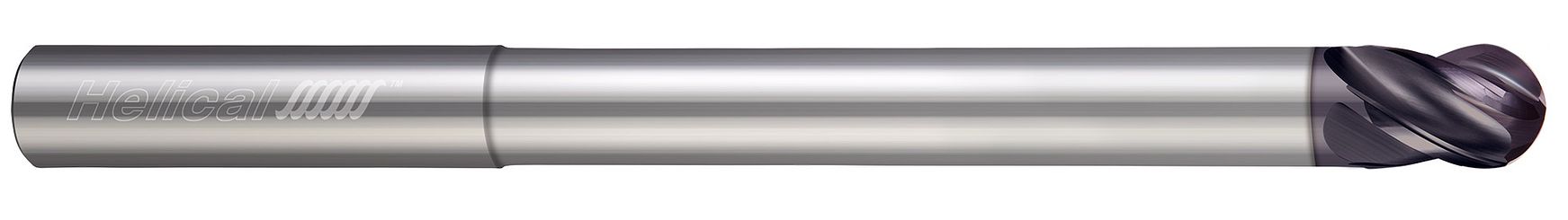

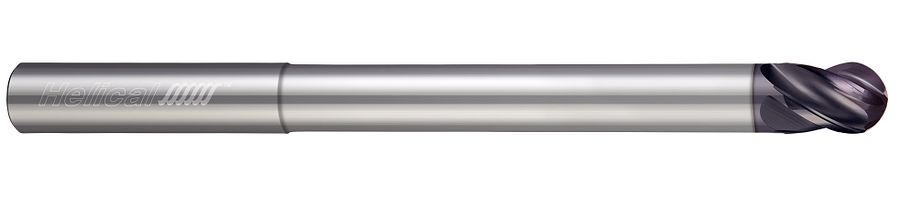

4 Flute, Ball - Variable Pitch, Reduced Neck (Aplus), End Mills for Steels, Tool Steels, & Cast Iron
tool-details-83512
tool-details-83512
Tool # 83512
  • Cutter Diameter: 0.1250" (1/8)
  • Length of Cut: 0.1562" (5/32)
  • Reach (LBS): 1.0000" (1)
  • Neck Diameter: 0.1180" (3 mm)
  • Shank Diameter: 0.1250" (1/8)
see more dimensions
  • Tool #: 83512
  • Quantity Available: 28
  • Price: $32.50
  • Customer Rating:
RESOURCES
OPTIMIZED FOR
Operations
3D Contouring 3D Contouring
Slotting Slotting
Plunging Plunging
Finishing Finishing
Roughing Roughing
Materials
Aluminum Non-Ferrous Metal Cast Iron Steel Stainless Steel High Temp Alloys Titanium

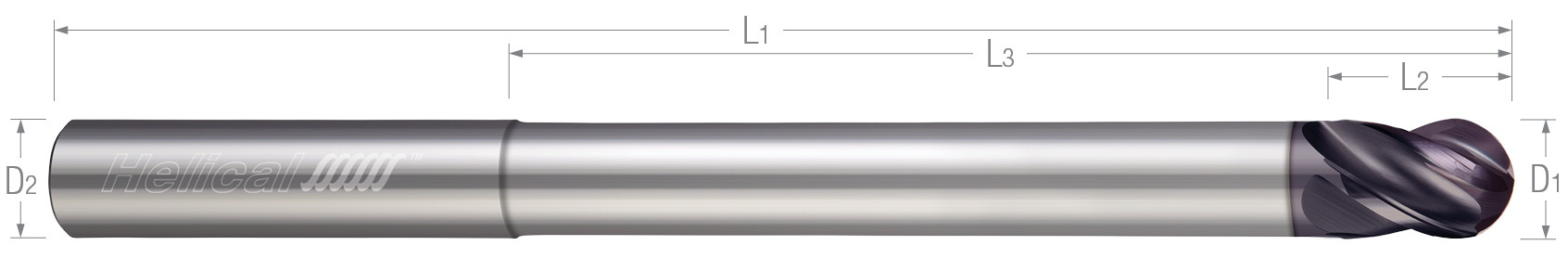

TOOL DIMENSIONS
  • Cutter Diameter 0.1250" (1/8)
  • Length of Cut 0.1562" (5/32)
  • Reach (LBS) 1.0000" (1)
  • Neck Diameter 0.1180" (3 mm)
  • Shank Diameter 0.1250" (1/8)
  • Overall Length 3.0000" (3)
  • Flutes 4
  • Profile Ball
  • Shank Modification None
  • Item Desc HSV-RN-LX-40125-BN
  • Coating APLUS
